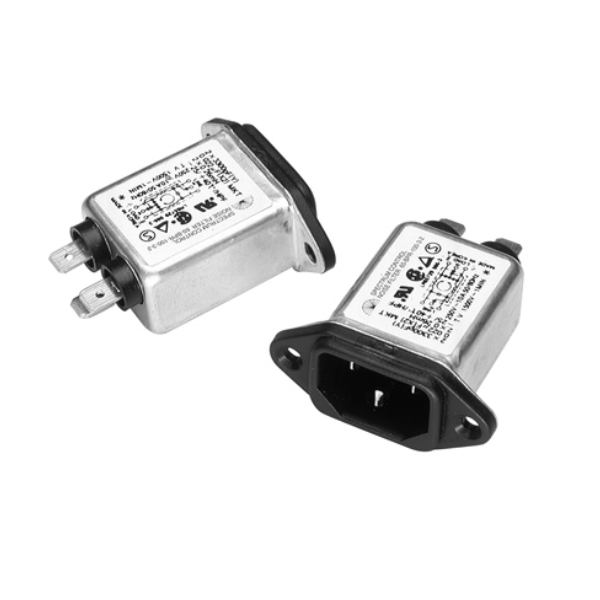

60-BPR/BPS Series

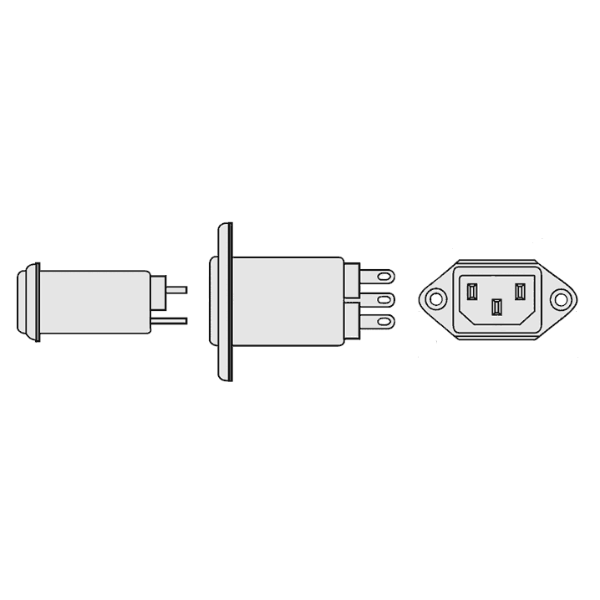

The Bolt-in Rear Terminal Power Entry Modules are ideally suited for products that must conform to FCC part 15 regulations. Metal case offers high performance. Meets over voltage of IEC 664 category II and complies with EIC 950. Uses IEC connector that meets most saftey standards. Solder Lug and Fast-on tab terminals available. Operating temperature of -25°C to 85°C. UL approved low leakage version also available.

■  Rated Voltage (@ 50/60Hz): 250VAC

■  Rated Current: 3.0A

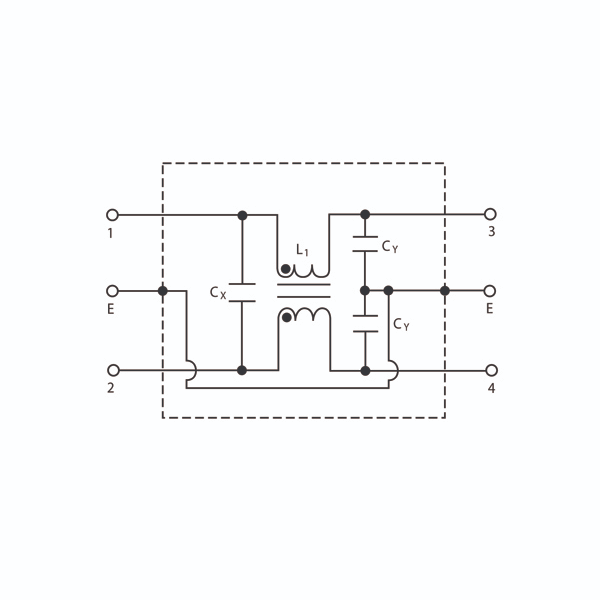

■  Inductance (L1): 1.2mH

■  Temperature Rise (Max.): 30°C
