Description:
■  Double H bridge drive
■  Chip: L298N (ST NEW)
■  Logical voltage: 5V
■  Drive voltage: 5V-35V
■  Logical current: 0mA-36mA
■  Drive current: 2A (MAX single bridge)
■  Storage temperature: -20 to +135
■  Max power: 25W
■  Weight: 30g

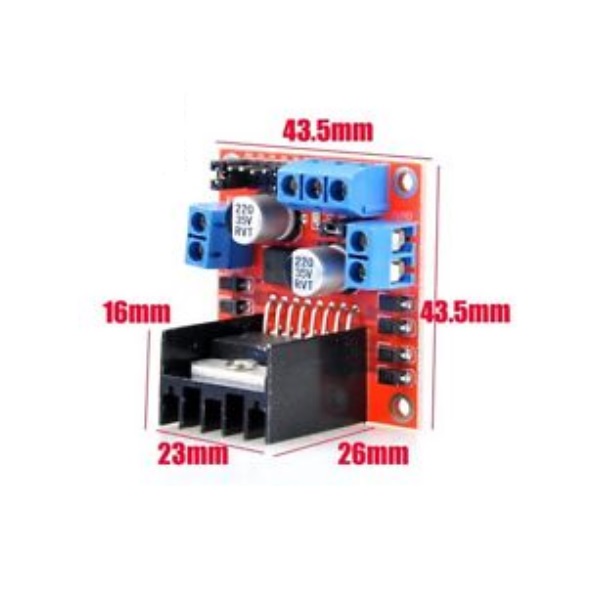

■  Size: 43 x 43 x 27mm

Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
■  When ENA enable IN1 IN2 control OUT1 OUT2
■  When ENB enable IN3 IN$ control OUT3 OUT4
