KINGSTATE KPE-242 PIEZO BUZZER 3-16VDC Φ=14mm 4.1KHz

Kingstate KPE-242 PIEZO BUZZER 3200Hz - 4.1KHZ, 70DB

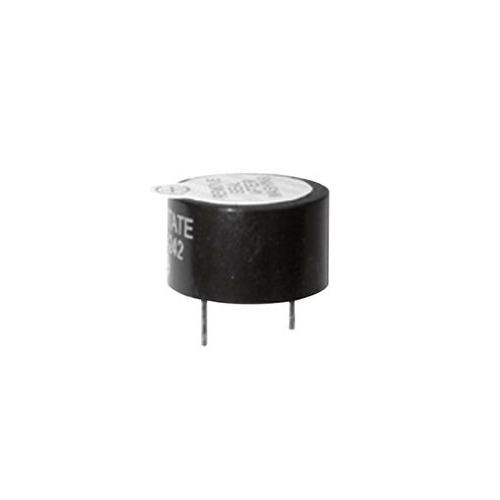

The KPE242 from Kingstate is a pin type piezo indicator.

■ Rated frequency of 4.2KHz

■ Operating voltage range from 3VDC to 16VDC

■ Maximum current consumption of 7mA at 12VDC

■ Minimum sound pressure level of 70dB at 30cm/12VDC

■ Continuous tone

■ Operating temperature range from -20°C to 70°C

■ Material noryl is black

■ Dimension of 13.7mm x 7.6mm

■ Internal circuitry type
