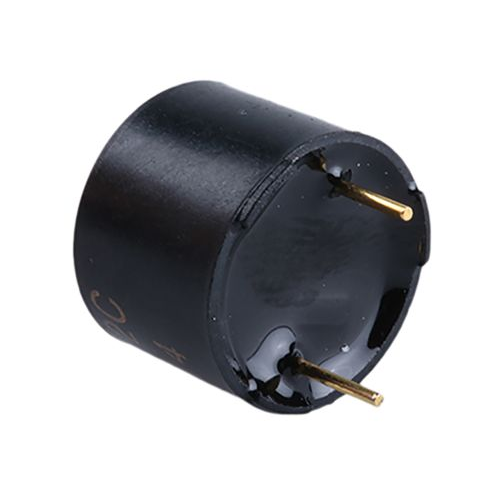

KINGSTATE 12V dc PCB MOUNT BUZZER DYNAMIC, 94dB CONTINUOUS KX-1212C-XC

RS Pro Round PCB mount continuous tone buzzers

This is a range of high sound output piezo buzzers. They are suitable for PCB mounting and are housed in a circular case.

Specifications:

■ Sound Level: 94dB

■ Tone Type: Continuous

■ Drive Type:Internal

■ Mounting Type: Through Hole

■ Dimensions: 12 x 9.5mm

■ Supply Current: 35mA

■ Diameter: 12mm

■ Height: 9.5mm

■ Maximum Frequency: 2.6kHz

■ Maximum Operating Temperature: +70°C

■ Maximum Supply Voltage: 16V dc

■ Minimum Frequency: 2000Hz

■ Minimum Operating Temperature: -30°C

■ Minimum Supply Voltage: 8V dc
